Potential Transformer

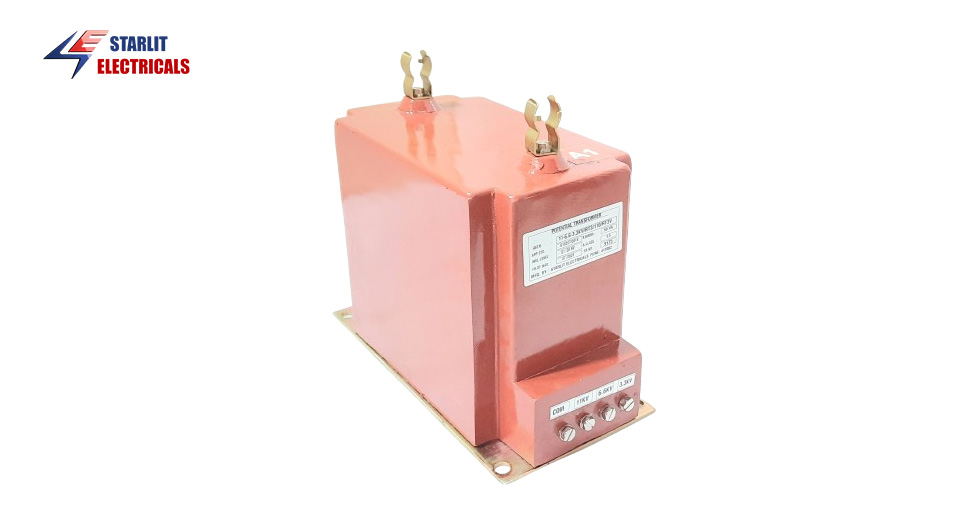

Potential Transformer (PTs), also known as Voltage Transformer, are instrument transformer designed to reproduce the primary voltage on the secondary side in a proportional and reduced form suitable for measurement and protection equipment.
They provide electrical isolation between the high-voltage power system and the measuring or protection devices, ensuring safety and accurate system monitoring.
Our Potential Transformer are specially designed for metering and protection applications and are manufactured in accordance with IS 16227 / IEC 61869 standards, ensuring compliance with international quality and performance requirements.
Product Range
| Sr No. | Type | Configuration |
|---|---|---|
| Low Voltage Current Transformer | ||
| 1 | 3 Phase LT PT. | Standard Type |
| High Voltage Current Transformer | ||
| 1 | Resin Cast | 3.3/6.6/11/22/33KV |
| 2 | Oil Cooled | 3.3/6.6/11/22/33KV |
Key Product Advantage (USP):
- Manufactured with multi-range and multi-core configurations with extended burden capability when required. Suitable for Low Voltage (LT) and High Voltage (HT) applications.
- Available in Single Phase and Three Phase configurations.
- Equipped with Automatic Pressure Gelation (APG) machines for Medium Voltage transformer manufacturing.
- Products undergo type testing in NABL Accredited Laboratories to ensure high reliability and compliance with industry standards.
- Custom designs can be developed as per specific customer or project requirements.
| Sr. No | Parameter | 11 KV | 22 KV | 33 KV |
|---|---|---|---|---|
| 1 | Primary Voltage | 11000/√3 V | 22000/√3 V | 33000/√3 V |
| 2 | Secondary Voltage | 110/√3 V OR 110/3 V | 110/√3 V OR 110/3 V | 110/√3 V OR 110/3 V |
| 3 | R. Burden | As per Customer Requirement | As per Customer Requirement | As per Customer Requirement |
| 4 | A. Class | Metering: 3.0, 1.0, 0.5, 0.2 | Metering: 3.0, 1.0, 0.5, 0.2 | Metering: 3.0, 1.0, 0.5, 0.2 |
| 5 | Protection | 6P, 3P | 6P, 3P | 6P, 3P |
| 6 | Voltage Factor | 1.2 Cont & 1.9 for 8 hours | 1.2 Cont & 1.9 for 8 hours | 1.2 Cont & 1.9 for 8 hours |
| 7 | Application Standard | IS 16227 & IEC 61869 | IS 16227 & IEC 61869 | IS 16227 & IEC 61869 |
| 8 | Insulation Level | 12/28/75 kVp | 24/50/125 kVp | 36/70/170 kVp |
| 9 | Insulation Class | A (Oil Cooled) / B+ (Resin Cast) | A (Oil Cooled) / B+ (Resin Cast) | A (Oil Cooled) / B+ (Resin Cast) |
| 10 | Winding Material | Copper | Copper | Copper |
| 11 | Frequency | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz |
| Resin Cast PT | ||||
| 1 | Dimensions (mm) | 250×150×220 | 310×200×250 | 370×280×400 |
| 2 | Weight (approx.) | 20 kg | 35 kg | 56 kg |
| Oil Cooled PT | ||||
| 1 | Dimensions (approx.) | 350×350×850 | 400×400×950 | 450×450×1100 |
| 2 | Weight (approx.) | 75 kg | 80 kg | 90 kg |
